Model | FS-YTA1100×1400 | FS-YTA1100×1250 |
Forming area | 1100×1400(mm) | 1000×1200(mm) |
Heating area | 1100×4400(mm) | 1100×4300(mm) |
Forming Speed | 16-18cycles/min | 16-18cycles/min |
Total Power | 200kw | 180kw |
Forming Depth | 0-60mm | |
Weight | 28T | 24T |
Stacking Method | Double robot arms stacking | |
Control Method | PLC and Color Touch Screen | |
1. Suck and pull the food containers up. Even the containers don’t be sucked out successfully, this won’t affect next move.
2. There are one conveyor belt on each side, both can achieve automatically stacking, reduce labor intensity.
3. Heater box separate into three parts, hydraulic cutting speed is faster, and use mechanical arms to suck products, all above methods reduce the whole working time.
4. Extend mold length, making the forming mold area larger and improving the production efficiency.
5. In cutting and stacking part installed two sets of static eliminator to eliminate static electricity generated in the production process to avoid fires.
At Longkou Fushi Packing Machinery Co., Ltd., we have been specializing in the research, development, and manufacturing of plastic processing and packaging machinery since 1994. With decades of experience in Thermoforming Machines, PS foam production lines, PE foam equipment, and automated forming solutions, we understand the challenges faced by modern manufacturers. High production speed, stable quality, reduced labor requirements, and flexible product changes are becoming increasingly important in today's competitive market. Our Double Robot Arms Model Vacuum Forming Machine is designed to provide a highly automated thermoforming solution for customers who require efficient and reliable large-scale production.
Vacuum forming technology is widely used for manufacturing plastic products such as food containers, medical trays, electronic packaging, automotive components, household products, and industrial parts. By heating plastic sheets and forming them through vacuum pressure, manufacturers can create lightweight products with accurate shapes and smooth surfaces.
Compared with traditional manual vacuum forming equipment or single-arm automation systems, our Double Robot Arms Model Vacuum Forming Machine provides faster product handling, smoother production flow, and higher automation levels. The two robot arms work together to complete product removal, transfer, stacking, or connection with other production processes.
We understand that every factory has different production goals. Some customers need higher output capacity, some require precise handling of large products, and others want to connect the forming machine with automatic packaging or stacking systems. Therefore, our double robot arm vacuum forming equipment can be customized according to product size, material type, mold structure, and production requirements.

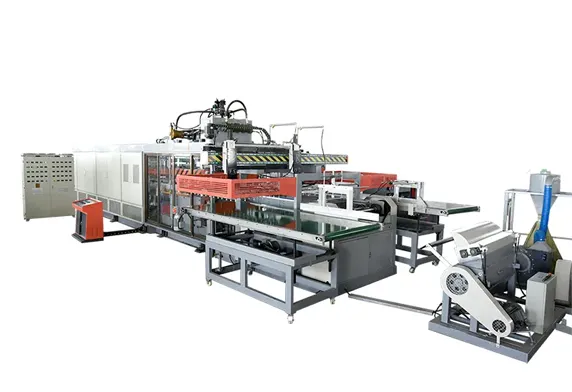

Our Double Robot Arms Model Vacuum Forming Machine is an advanced automatic thermoforming system equipped with two robotic arms for efficient product handling and production automation. It is developed for manufacturers who require higher production efficiency and more stable operation compared with traditional forming equipment.
The machine heats plastic sheets until they become soft and then uses vacuum pressure to shape the material according to the mold design. After forming and cooling, the double robot arms automatically remove finished products and complete handling operations.
The two-arm structure allows different handling tasks to be completed simultaneously or separately. One robot arm can focus on product picking, while the other can assist with transfer, stacking, or secondary operations depending on production requirements.
As an experienced automatic vacuum forming machine manufacturer, we focus on creating practical automation solutions that help customers improve productivity and maintain consistent product quality.
| Comparison Item | Double Robot Arms Vacuum Forming Machine | Single Robot Arm Vacuum Forming Machine |
|---|---|---|
| Automation Level | Higher automation capability | Standard automatic handling |
| Product Handling Speed | Faster transfer efficiency | Suitable for medium-speed production |
| Production Flexibility | Supports complex handling tasks | Suitable for simpler operations |
| Large Batch Production | Designed for high-volume manufacturing | Suitable for regular production needs |
Source: Comparison based on common thermoforming automation structures and our experience manufacturing vacuum forming equipment.
The working principle of our Double Robot Arms Model Vacuum Forming Machine combines thermoforming technology and robotic automation. The complete production process includes sheet feeding, heating, vacuum forming, cooling, robot handling, and product collection.
Plastic sheets are automatically transferred into the forming area through the feeding system. Accurate positioning ensures stable production before heating.
A stable feeding process helps improve product consistency and reduce production errors.
The plastic sheet passes through the heating system until it reaches the correct forming temperature. Proper heating allows the material to become flexible enough for accurate shaping.
Temperature control plays an important role in maintaining forming quality.
After heating, the softened sheet enters the mold area. Vacuum pressure removes air between the sheet and mold, allowing the material to follow the mold shape.
This process creates accurate product dimensions and detailed surface patterns.
After cooling, the two robot arms automatically remove finished products and transfer them according to production requirements.
The dual-arm system improves handling speed and supports continuous production.
Finished products can be stacked, transferred, or connected with downstream equipment for further automation.
| Production Stage | Main Function | Production Benefit |
|---|---|---|
| Heating | Softens plastic sheets | Improves forming quality |
| Vacuum Forming | Creates product shape | Ensures accuracy |
| Double Robot Handling | Automatic product transfer | Improves production speed |
| Collection | Organizes finished products | Supports automated workflow |
Source: Process information based on vacuum forming technology principles and our automation equipment manufacturing experience.
Two robot arms provide faster and more flexible handling compared with traditional manual operation, helping manufacturers achieve efficient production.
The automatic handling system reduces waiting time between production steps and improves overall machine utilization.
Automatic forming and handling reduce differences caused by manual operation, helping maintain consistent product quality.
The machine can be connected with automatic packaging, stacking, cutting, or other production equipment according to customer needs.
At Longkou Fushi Packing Machinery Co., Ltd., we understand that high-volume thermoforming production requires more than accurate forming technology. Modern factories also need faster handling speed, lower labor dependence, stable operation, and easy connection with automated production systems. Our Double Robot Arms Model Vacuum Forming Machine combines advanced vacuum forming technology with dual robotic handling to provide an efficient solution for manufacturers who require continuous and automated production.
Based on our experience in PS foam food container production lines, PE foam machines, thermoforming systems, and customized automation equipment, we focus on solving practical production challenges. Every part of the machine, from heating control to robot movement, is designed to improve production stability and product consistency.
The biggest advantage of the double robot arm structure is improved handling efficiency. Traditional equipment may require manual product removal, which can limit production speed and increase labor costs.
Our dual robot arm vacuum forming machine allows two robotic systems to cooperate during production, creating a smoother and faster workflow.
In high-speed thermoforming production, the time between forming and product removal directly affects overall output.
The double robot arm system reduces handling waiting time and helps manufacturers maintain continuous production cycles.
Accurate robot movement is important for protecting finished products and maintaining production stability.
Our robot handling system is designed for stable positioning, smooth movement, and reliable operation during long production periods.
Automation alone cannot guarantee product quality. The forming process must also provide stable heating, accurate vacuum pressure, and reliable mold performance.
Our vacuum forming system helps manufacturers produce plastic products with consistent dimensions, clear details, and stable quality.
Industries such as food packaging, medical packaging, and electronics require large quantities of thermoformed products every day.
The double robot arms model is designed for customers who need higher production capacity and automated manufacturing processes.
Repetitive manual handling tasks can increase labor costs and create safety concerns in production environments.
Automatic robot handling reduces direct worker involvement in repetitive operations and creates a more efficient working environment.
Modern factories often require connected production systems rather than individual machines.
Our double robot arm vacuum forming machine can be integrated with cutting machines, stacking systems, packaging equipment, and other downstream processes.
| Technical Advantage | Production Challenge | Customer Benefit |
|---|---|---|
| Dual Robot Arm System | Slow manual handling | Improves production speed |
| Precision Robot Control | Product damage during transfer | Improves handling reliability |
| Automatic Forming Process | Quality differences between batches | Improves product consistency |
| Production Line Integration | Separate production processes | Creates efficient automation solutions |
Source: Technical information based on our vacuum forming automation engineering experience and production testing.
Our Double Robot Arms Model Vacuum Forming Machine is designed for industries that require efficient automatic production of plastic formed products. With high automation capability and flexible mold compatibility, the machine can meet different manufacturing requirements.
Food packaging manufacturers often need high-speed production of trays, containers, lids, and disposable packaging products.
The double robot arm vacuum forming machine helps improve production efficiency and maintain stable product quality.
Medical packaging requires accurate dimensions and reliable quality control.
Automated thermoforming production helps manufacturers achieve consistent packaging results.
Electronic components often require customized protective trays and packaging structures.
Vacuum formed plastic products provide accurate positioning and protection during transportation.
Automotive suppliers use thermoformed plastic parts for interior components, protective packaging, and logistics solutions.
The machine can produce various household plastic products according to different mold designs.
| Application Field | Typical Products | Production Advantage |
|---|---|---|
| Food Packaging | Food trays and containers | High-speed automatic production |
| Medical Industry | Medical trays and packages | Stable quality control |
| Electronics | Protective plastic trays | Customized forming capability |
| Automotive | Plastic components and packaging parts | Flexible manufacturing |
Source: Application information based on common vacuum forming applications and our experience supplying thermoforming machinery.
At Longkou Fushi Packing Machinery Co., Ltd., we believe reliable automation equipment comes from professional engineering, careful manufacturing, and strict quality inspection. Since 1994, we have continuously developed technologies for thermoforming machines, foam processing equipment, and customized production systems.
Our manufacturing experience allows us to understand both machine performance and customer production needs. We focus on creating equipment that provides stable operation and long-term value.
Before manufacturing, our engineers analyze product size, material type, production speed, robot handling requirements, and factory layout.
Key systems including heating units, vacuum forming structures, robot arms, electrical controls, and mechanical components are assembled and inspected carefully.
Before shipment, we test machine operation and verify important functions to ensure customers receive reliable double robot arm vacuum forming equipment ready for production.
