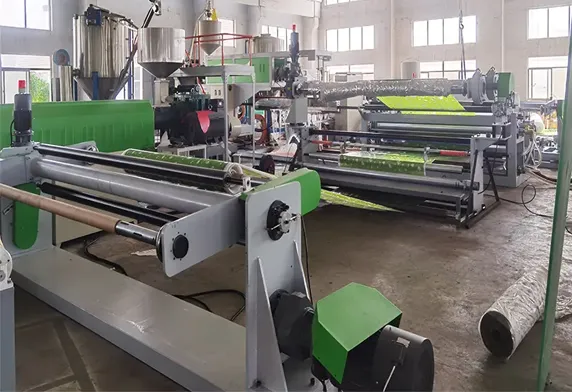

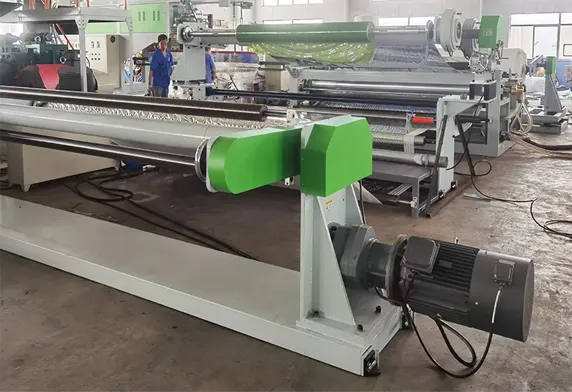

The laminating unit consists of four types of machines, which are the main machine, the mirror roller system, the unwinding system, and the winding system. This unit is suitable for PSP sheets, EPE foamed fabrics, non-woven fabrics, aluminum film, and plastic woven fabrics. Or paper and other substrates, single-sided coating type double-layer composite to improve the tensile strength, air-tightness and moisture-proof performance of packaging materials. It is used to produce tarpaulins, grain, feed, cement, and sanitary treatment of the inner walls of food containers (fast food Ideal equipment for packaging materials such as boxes, large bowls of noodles) .

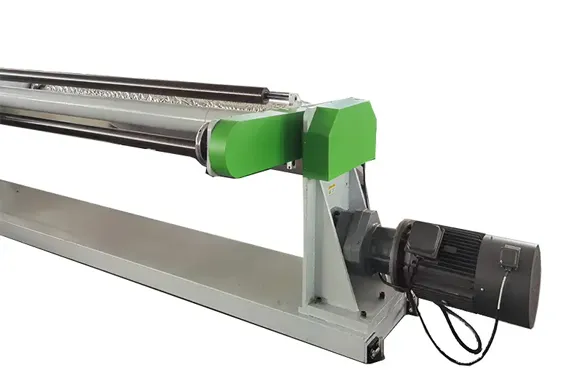

The rewinding and unwinding machine of this unit adopts automatic deviation correction and automatic feeding device,double-station surface friction and curling, the clutch between each roller is controlled by pneumatic, extrusion and traction adopt variable frequency stepless speed regulation, which has energy consumption Few, high performance, easy operation, uniform coating, smooth curl, anti-peel strength and other characteristics.
No | Item | Data |
1 | Power | 180-200KW |
2 | LDPE and PE, coating and laminating | LDPE and PE, coating and laminating level |
3 | Fastest working speed: | 80-100m/min |
4 | Max coating effective width:> | customized |
5 | Coating thickness:> | 0.01-0.05mm |
6 | Coating thickness error: | ±5% |
7 | 10-150kg / overall width (constant tension) | |
8 | Working power: | under 100KW |
At Longkou Fushi Packing Machinery Co., Ltd., we have been specializing in the design and manufacturing of plastic processing and packaging machinery since 1994. With decades of experience in PE foam machines, thermoforming equipment, and customized production systems, we understand that modern manufacturers need machines that can improve product performance while maintaining stable production efficiency. Our Extrusion Laminating Machine is developed to provide reliable composite material production solutions for customers in packaging, construction, automotive, and industrial applications.
In many industries, a single material cannot always meet all performance requirements. By combining different materials together, manufacturers can create products with better strength, protection, sealing ability, moisture resistance, or surface performance. Extrusion laminating technology provides an efficient way to bond different materials into a new composite structure.
Our Extrusion Laminating Machine uses molten polymer material as an adhesive layer to combine different substrates into a laminated product. The machine is suitable for laminating PE foam, fabric, film, paper, aluminum foil, nonwoven materials, and other flexible substrates according to production requirements.
We know that every customer has different production goals. Some customers need higher output, some focus on bonding strength, and others require customized material combinations. Therefore, our extrusion laminating equipment can be configured according to product structure, material type, production speed, and application requirements.
Our Extrusion Laminating Machine is industrial equipment used to combine two or more materials into a single composite product through extrusion coating technology. The machine melts polymer materials and applies them between layers to create a strong bond.
Unlike traditional adhesive laminating methods, extrusion lamination uses molten resin as the bonding layer. This process can provide good adhesion, stable production speed, and efficient material processing.
The machine usually includes material feeding systems, extrusion units, coating dies, laminating rollers, cooling systems, and winding devices. Each part works together to ensure stable composite production.
As an experienced extrusion laminating machine manufacturer, we focus on practical machine design to help customers improve production efficiency and product quality.
| Comparison Item | Extrusion Laminating Machine | Traditional Adhesive Lamination |
|---|---|---|
| Bonding Method | Molten polymer extrusion bonding | Liquid adhesive bonding |
| Production Process | Continuous operation | Requires adhesive application and drying |
| Material Compatibility | Suitable for multiple flexible materials | Depends on adhesive performance |
| Production Efficiency | High-speed industrial processing | Usually slower processing steps |
Source: Comparison based on common lamination technologies and our experience manufacturing composite material equipment.
The working process of our extrusion laminating machine is based on continuous extrusion coating and material bonding technology. The main steps include material feeding, polymer melting, extrusion coating, lamination, cooling, and winding.
Different substrate materials enter the machine through feeding systems. These materials may include foam sheets, fabrics, films, paper, or other flexible materials.
Stable feeding is important because it affects final product alignment and bonding quality.
Plastic resin is heated and melted inside the extrusion system. The molten polymer is then delivered evenly through the extrusion die.
Temperature control and material flow stability directly influence coating thickness and bonding performance.
The molten polymer layer is placed between different materials and pressed through laminating rollers. This creates a strong connection between layers.
Proper pressure control helps improve bonding quality and product stability.
After lamination, the composite material is cooled and collected through the winding system. The finished roll can then be used for further processing.
| Production Stage | Main Function | Effect on Product |
|---|---|---|
| Material Feeding | Controls substrate movement | Improves alignment |
| Extrusion | Provides bonding layer | Determines adhesion quality |
| Lamination | Combines materials | Creates composite structure |
| Cooling and Winding | Stabilizes finished product | Improves handling efficiency |
Source: Process information based on extrusion lamination technology principles and our equipment manufacturing experience.
The extrusion lamination process creates a stable connection between different materials. This helps improve product strength and functional performance.
The machine supports continuous roll-to-roll production, making it suitable for industrial manufacturers requiring high output.
According to customer needs, different materials can be combined to create products with improved protection, strength, or surface properties.
Precise extrusion control helps maintain consistent polymer coating thickness and improves finished product quality.
At Longkou Fushi Packing Machinery Co., Ltd., we understand that composite material production requires stable bonding performance, accurate process control, and continuous operation capability. A small difference in coating thickness, material alignment, or temperature control may influence the final product quality. Therefore, our Extrusion Laminating Machine is designed to help manufacturers achieve reliable lamination results with efficient production performance.
With years of experience in foam processing equipment, Thermoforming Machinery, and customized production systems, we focus on solving practical problems faced by manufacturers. Our equipment design considers production speed, bonding strength, material compatibility, energy consumption, and maintenance convenience.
The extrusion system is one of the most important parts of a laminating machine. Stable polymer melting and uniform extrusion directly affect the bonding quality of finished products.
Our extrusion laminating equipment uses controlled heating and extrusion processes to help maintain consistent coating thickness and stable material flow during production.
Different industries require laminated materials with reliable bonding strength. Poor bonding may cause layer separation during transportation or use.
By using molten polymer as the bonding layer, our extrusion lamination machine helps create a stable connection between different substrates.
Modern manufacturers often need composite materials with different functions. One material may provide strength, while another provides protection, flexibility, or surface performance.
Our machine can be configured for different material combinations, including PE foam, plastic film, fabric, paper, nonwoven materials, and other flexible substrates.
The thickness of the polymer bonding layer affects both material performance and production cost. Excessive coating increases material usage, while insufficient coating may reduce bonding quality.
Our extrusion laminating machine provides stable process control to help manufacturers achieve balanced product quality and material efficiency.
Many industries require continuous production of laminated materials. Manual bonding methods often cannot meet large-volume manufacturing requirements.
The roll-to-roll production design allows efficient material processing and helps customers improve production capacity.
Equipment used in daily production must be easy to operate and maintain. Complex machines may increase training costs and production interruptions.
We focus on practical machine structures and user-friendly operation systems to help customers manage production more efficiently.
| Technical Advantage | Production Challenge | Customer Benefit |
|---|---|---|
| Stable Extrusion System | Uneven coating thickness | Improves product consistency |
| Strong Lamination Process | Layer separation problems | Improves bonding reliability |
| Flexible Material Combination | Limited product development | Supports customized materials |
| Continuous Production Design | Low production efficiency | Improves manufacturing capacity |
Source: Technical information based on our extrusion laminating equipment engineering experience and production testing.
Our Extrusion Laminating Machine is widely used in industries that require composite materials with improved protection, strength, and functional performance. By combining different layers, manufacturers can create materials suitable for specific applications.
PE foam is widely used for cushioning and protection. Through extrusion lamination, foam sheets can be combined with films, fabrics, or other materials to improve surface performance and application value.
Our equipment helps foam manufacturers produce multifunctional laminated foam products for different markets.
Packaging products often require materials with multiple functions, such as moisture resistance, protection, and improved appearance.
Laminated films and composite materials produced by extrusion lamination are widely used in packaging applications.
In construction industries, laminated materials are often used for insulation, moisture protection, and surface protection.
Composite structures produced by extrusion lamination can provide improved material performance.
Automotive suppliers use laminated materials for interior components, protective packaging, and functional parts.
Stable lamination quality helps suppliers provide consistent materials for automotive production.
Laminated foam and protective materials are commonly used in furniture production and transportation protection.
| Industry | Laminated Product Example | Main Function |
|---|---|---|
| Packaging | Composite films and protective materials | Protection and barrier performance |
| Foam Products | PE foam laminated sheets | Improved surface function |
| Construction | Insulation composite materials | Moisture and thermal protection |
| Automotive | Interior and protective materials | Functional improvement |
Source: Application information based on common extrusion lamination uses and our experience supplying composite material machinery.
At Longkou Fushi Packing Machinery Co., Ltd., we believe reliable equipment comes from careful engineering, professional manufacturing, and continuous improvement. Since 1994, we have developed mature technologies in PE foam machines, thermoforming equipment, Fruit Processing Machinery, and customized production systems.
Our manufacturing experience helps us understand both machine performance and customer application requirements. We focus on providing practical equipment solutions for different industries.
Before manufacturing, our engineers evaluate material combinations, production speed, product structure, and factory conditions to design suitable machine configurations.
During production, the extrusion system, laminating rollers, cooling components, and control systems are assembled and inspected carefully.
Before shipment, we test machine operation and verify important functions to ensure customers receive reliable equipment ready for production.
